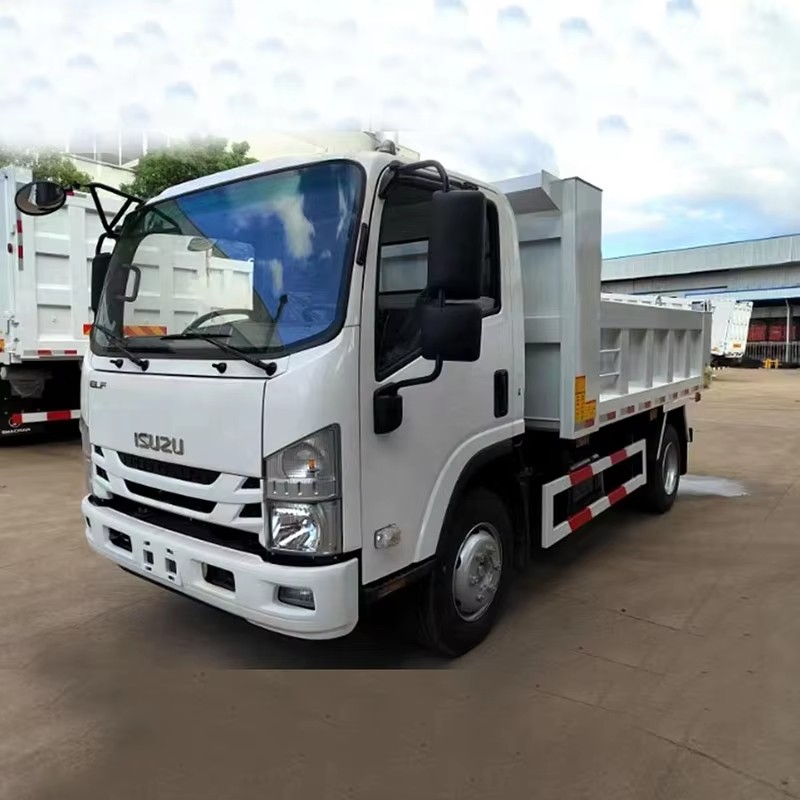

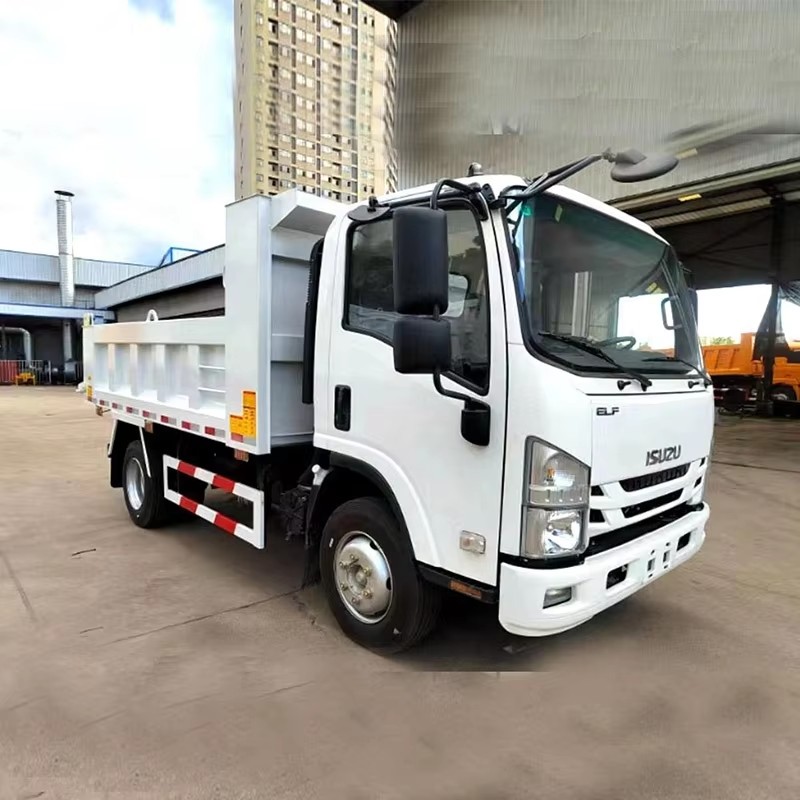

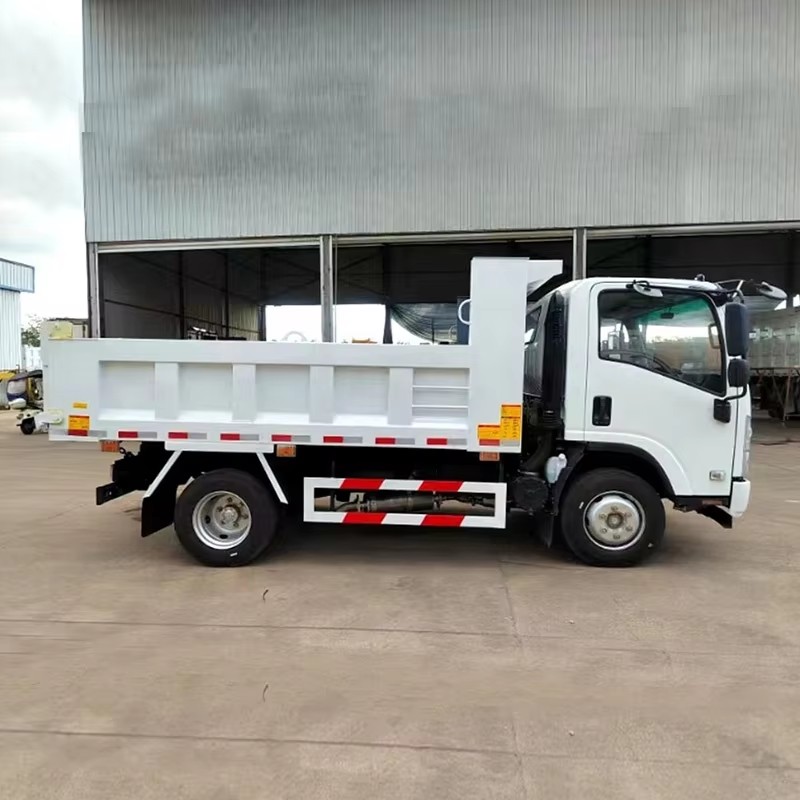

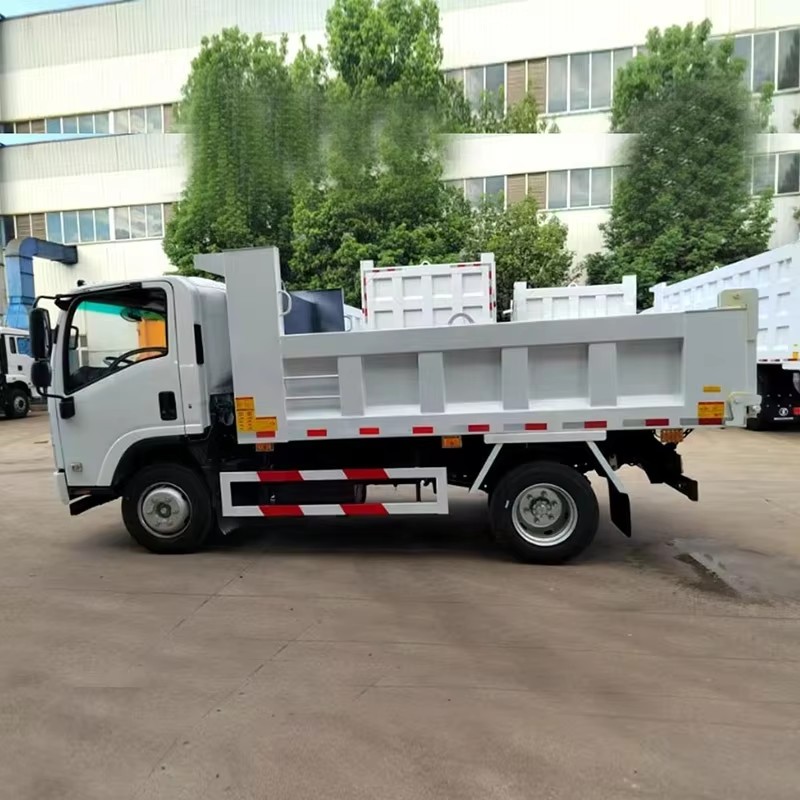

1SUZU ELF 700P Tipper Truck 4Ton Mini Dump Truck Price Philippines
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251024/1761292557853017.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251024/1761292557336110.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251024/1761292557411057.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251024/1761292557652375.jpg)
![[pics:title]](/static/upload/image/20251024/1761292557853017.jpg)
![[pics:title]](/static/upload/image/20251024/1761292557336110.jpg)
![[pics:title]](/static/upload/image/20251024/1761292557411057.jpg)
![[pics:title]](/static/upload/image/20251024/1761292557652375.jpg)
Vehicle Technical Parameters | ||
Product Name | Dump Truck | |
Overall Dimensions(mm) | 5700×2060×2250 | |
Curb Weight(Kg) | 3700 | |
Loading Capacity(Kg) | 3470 | |
Total Mass(Kg) | 7300 | |
Cargo Tank Dimension（mm） | 3500×2100×600 | |
Cargo Tank Volume(m³) | 4 | |
Tank Body Material | Carbon Steel | |
Cargo Tank thickness（mm） | Side 3 Bottom 4 | |
Cargo Tank Lifting Method | Hydraulic Cylinder Lifting | |
Number of Cylinders（pcs） | 2 | |
Cylinder Position | Girder in the middle | |
Cylinder Diameter（mm） | 100 | |
Door Position | Rear/Side/Top | |
Chassis Technical Parameters | ||
Chassis Brand | 1suzu | |
Drive Form | 4*2 | |
Steering Wheel | Left Hand Drive | |
Steering Device | Power Assisted Steering | |
Wheelbase(mm) | 3360 | |
Engine Brand and Model | 1suzu Power/4KH1CN6LB | |
Max Engine Power(Kw) | 88 | |
Engine Displacement(ml) | 2999 | |
Engine Emission Standard | Euro 6 | |
Number of Engine Cylinders | 4 | |
Fuel Type | Diesel | |
Gearbox | 5 Speed Forward 1 Reverse | |
Front/Rear Axle(t) | 3/5 | |
Suspension | Multi Leaf Springs | |
Brake System | Front/Rear Drum Full Air Braking | |
Wheels and Tyre Size | 6+1/( 7.00R16LT) | |
Cab Configuration | Single Row Cab, Air Conditioning, Radio, MP3 and USB Port | |
Rated Voltage | 24V,DC | |
Cab Color | White,other color is optional | |
