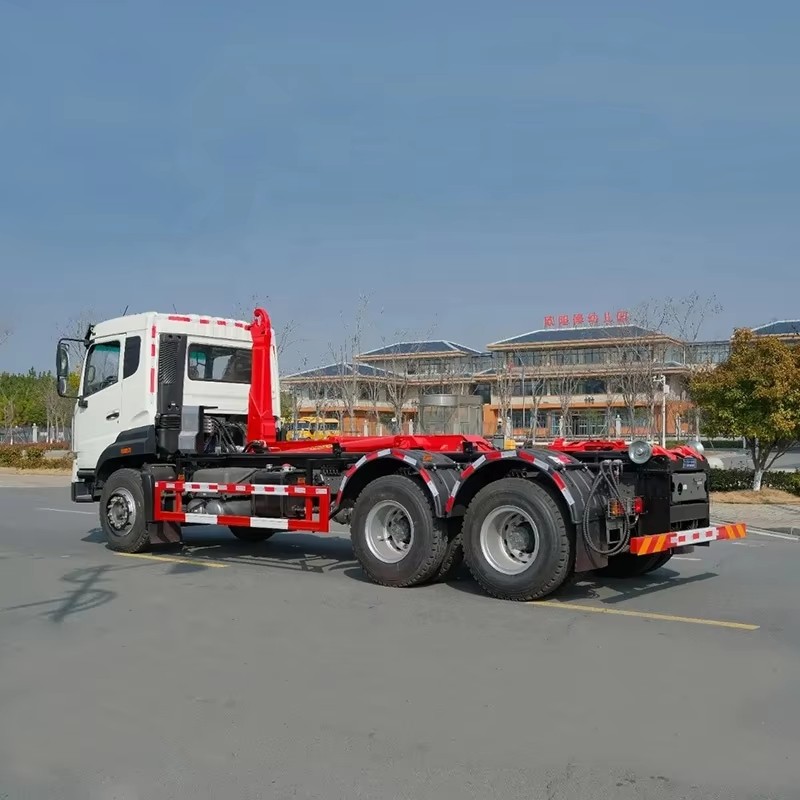

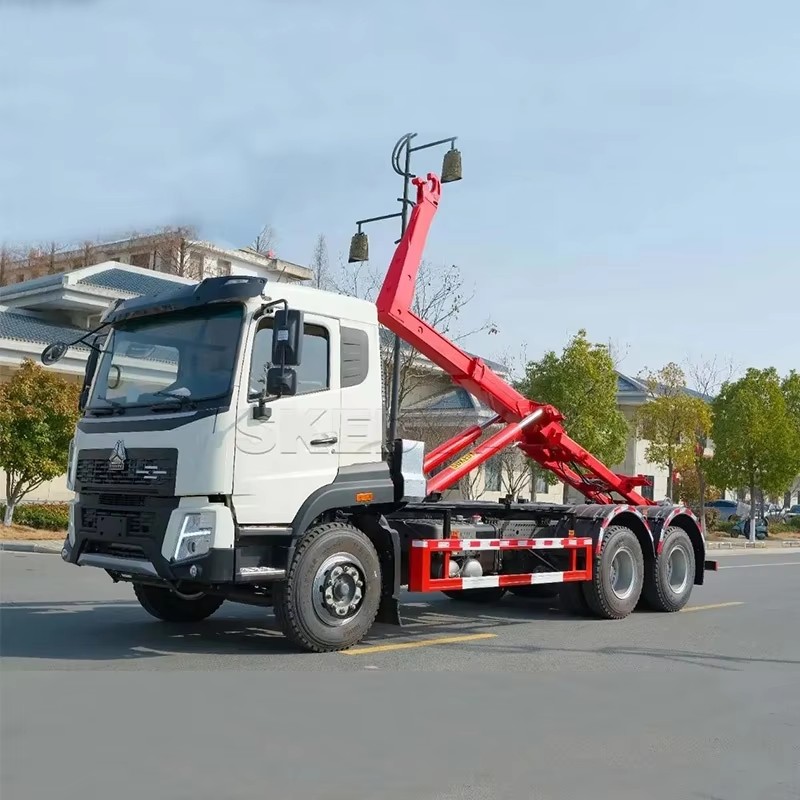

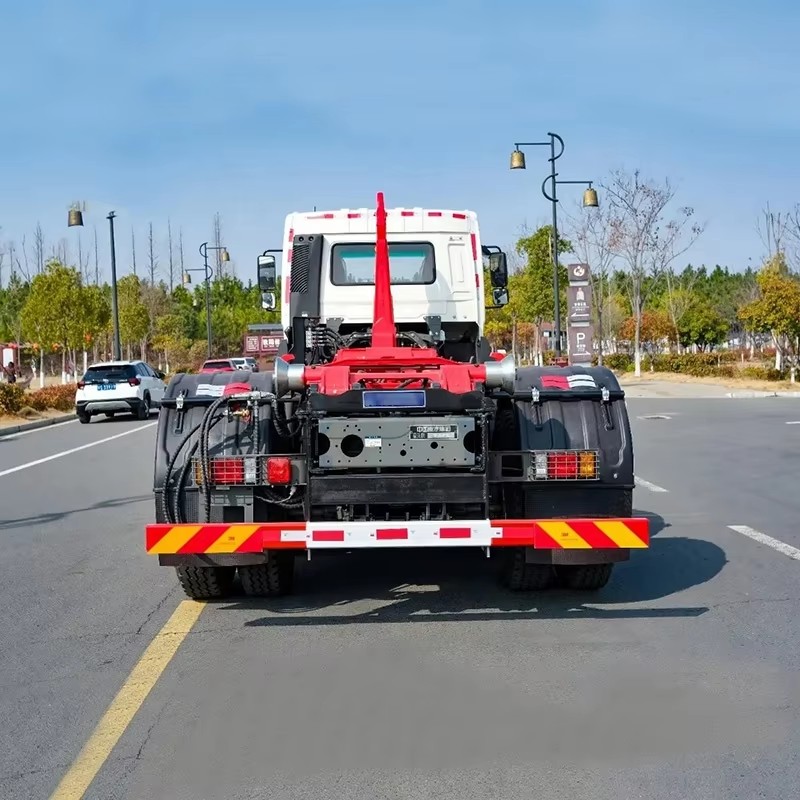

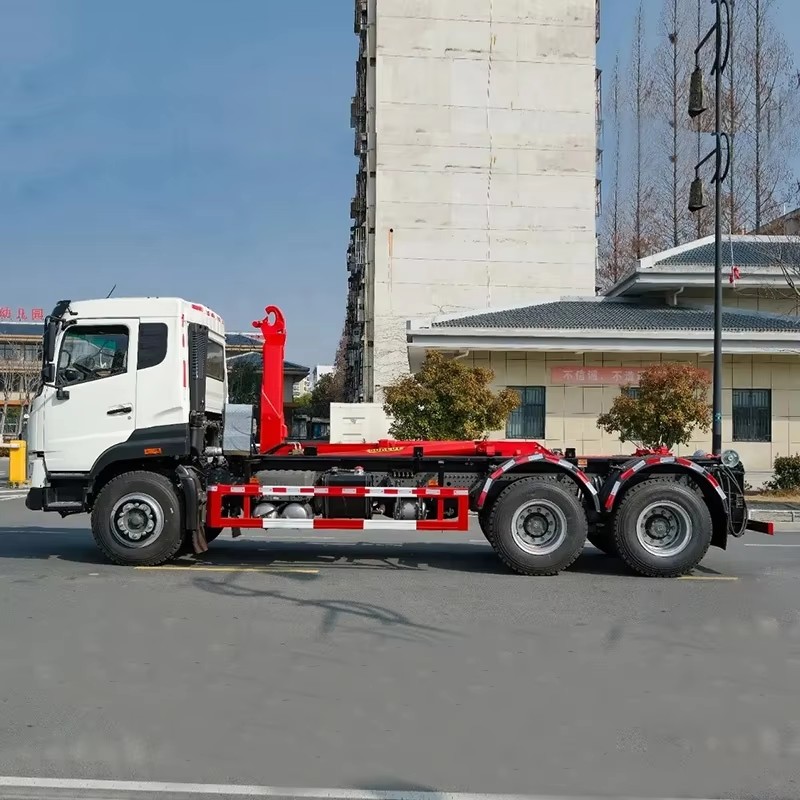

Howo 30 Ton Hook Lifting Garbage Loading Truck 6x4 Hydraulic System Arm Roll Off Auto Type Garbage T
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251019/1760860175624202.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251019/1760860175899963.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251019/1760860175614545.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251019/1760860175750106.jpg)
![[pics:title]](/static/upload/image/20251019/1760860175624202.jpg)
![[pics:title]](/static/upload/image/20251019/1760860175899963.jpg)
![[pics:title]](/static/upload/image/20251019/1760860175614545.jpg)
![[pics:title]](/static/upload/image/20251019/1760860175750106.jpg)
[VehicleTechnical Parameters] | ||
Product Name | Hook Lift Garbage Truck | |
Kerb Weight (Kg) | 11380 | |
Overall Dimensions (mm) | 8355×2500×3150 | |
Lifting Capacity(Kg) | 20 | |
Big Arm Structure | Integrated Molding | |
Working Environment Temperature （℃） | -20~45 | |
Operating Mode | Automatic+Manual | |
Dumping Angle of Garbage Bin（°） | 70 | |
Garbage Bin Capacity(m³) | 20 | |
Trash Container Thickness（mm） | Side 5 Bottom 5 | |
Garbage Bin Size(mm) | 6200×2500×1700 | |
Material of Garbage Bin | Q235 Carbon Steel | |
Garbage Bin Coating Process | Baking Varnish | |
Max Passengers Allowed | 3 | |
[Chassis Technical Parameters] | ||
Brand Name | Sinotruk Howo | |
Brake | Air Brake/Oil Brake | |
Fuel Type | Diesel | |
Engine Power（kw） | 228 | |
Front Axle/Rear Axle (t) | 7.5/11 | |
Gearbox Model | 9-Speed Manual | |
Number of Axles | 3 | |
Wheelbase (mm) | 4350+1350 | |
Number of Tires | 10 | |
Tire Size | 11.00R20 | |
