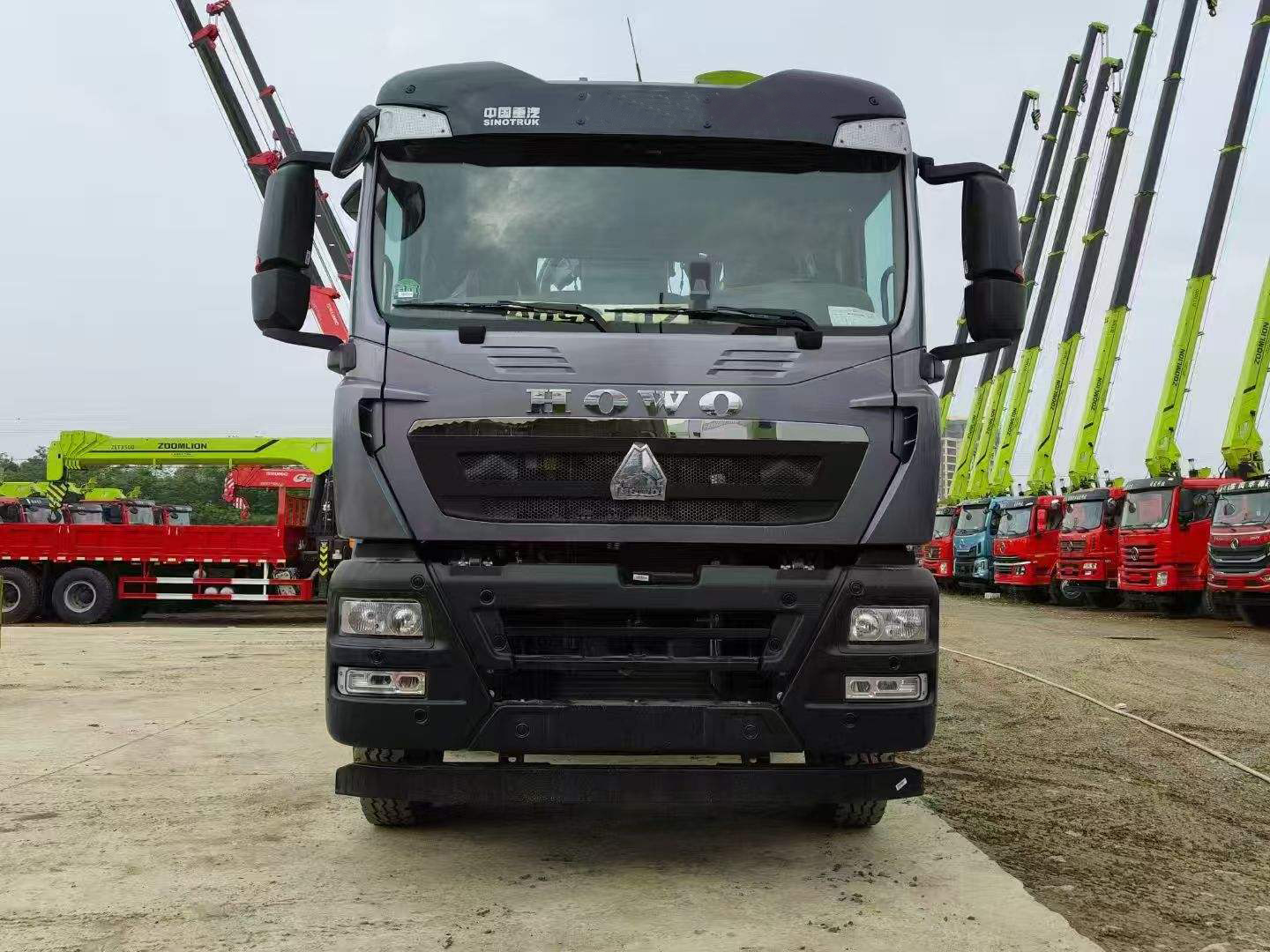

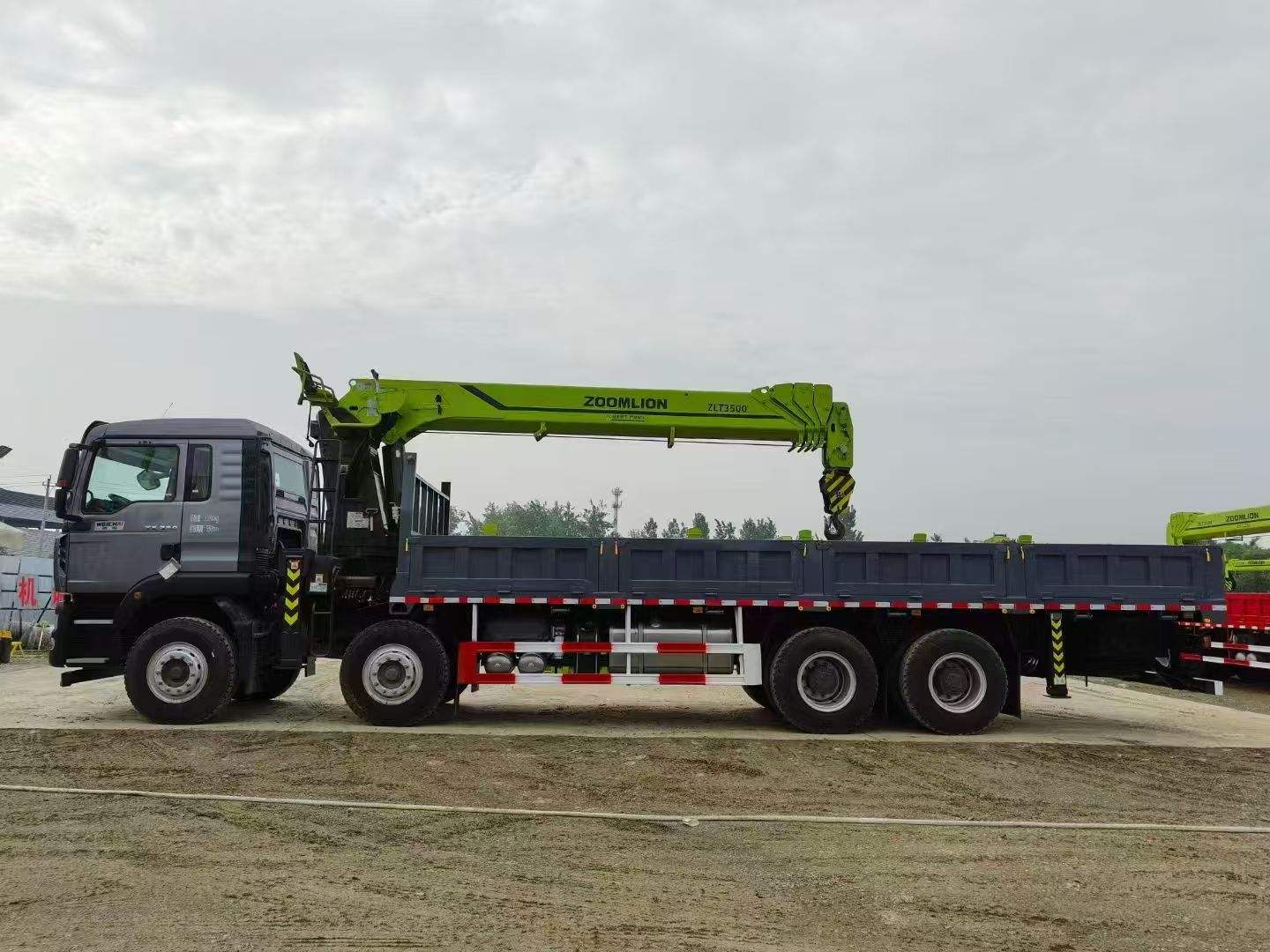

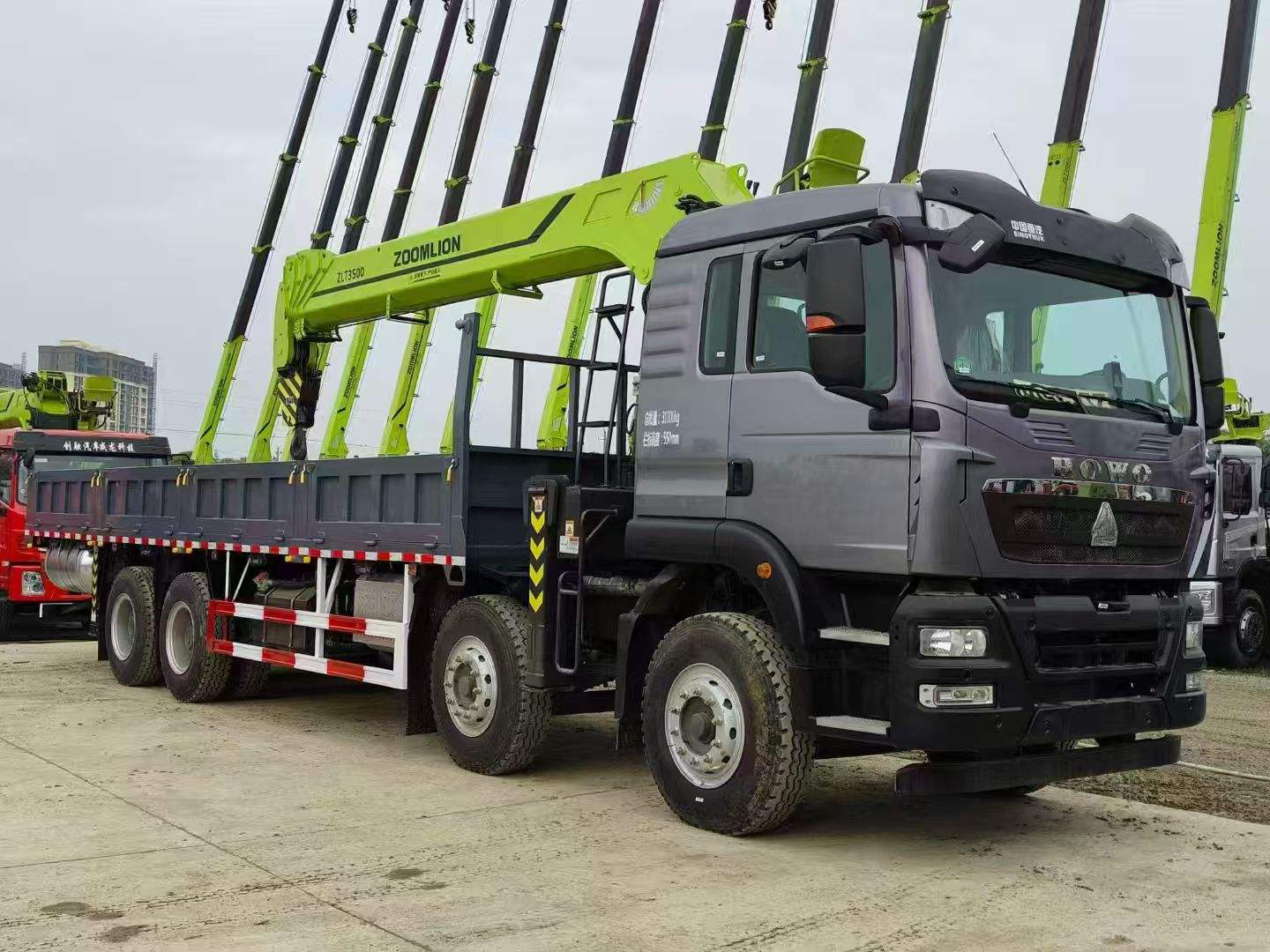

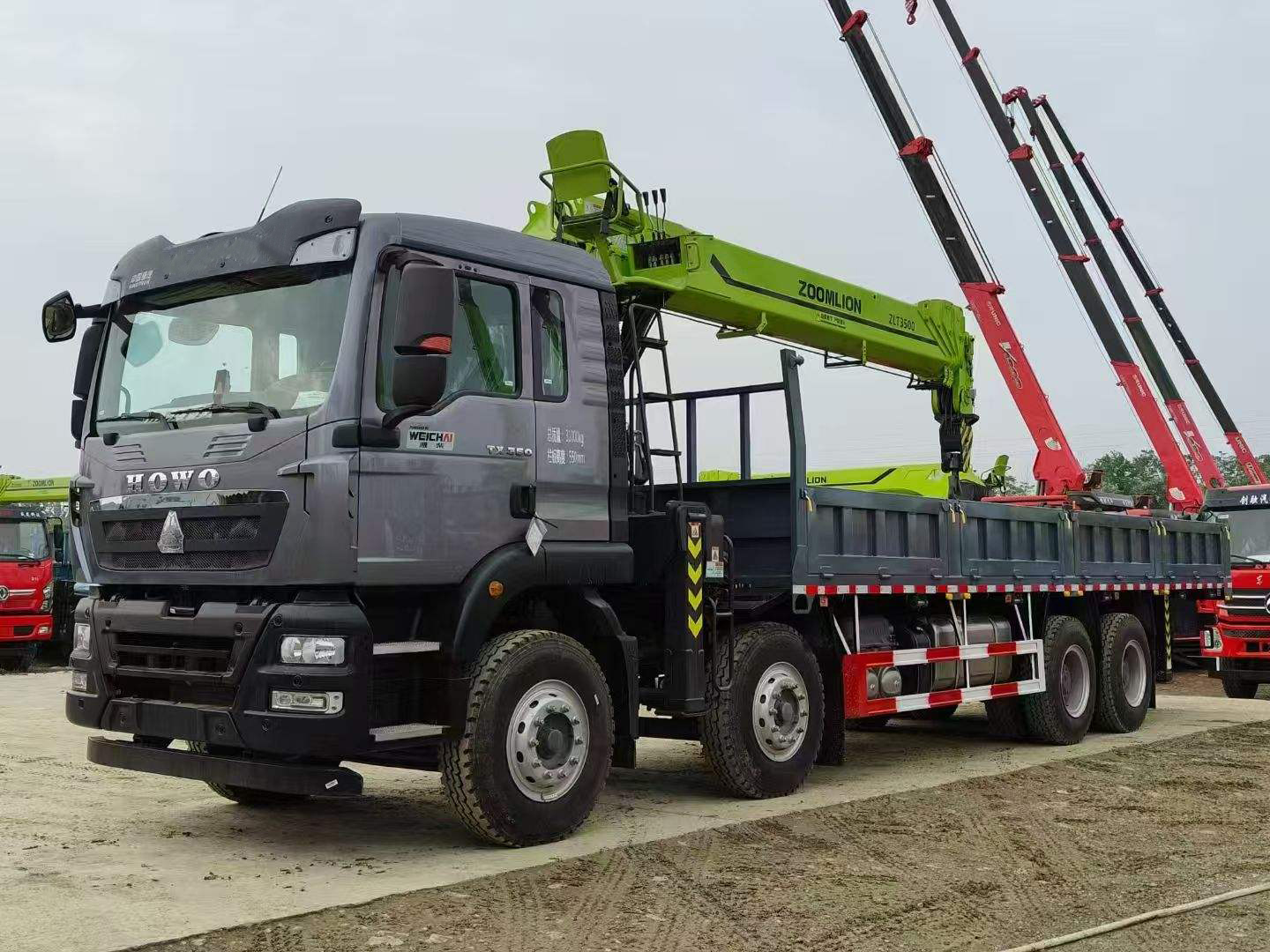

Sinotruk Howo 8x4 Mobile Crane 14 Ton Telescopic Knuckle Boom with 16m Lifting Height High Efficienc
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251111/1762872704105912.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251111/1762872705252669.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251111/1762872705622962.jpg)
![[pics:title]](https://www.hbjlgs.com/static/upload/image/20251111/1762872709381821.jpg)
![[pics:title]](/static/upload/image/20251111/1762872704105912.jpg)
![[pics:title]](/static/upload/image/20251111/1762872705252669.jpg)
![[pics:title]](/static/upload/image/20251111/1762872705622962.jpg)
![[pics:title]](/static/upload/image/20251111/1762872709381821.jpg)
Vehicle Technical Parameters | |
Product Name | Truck Muonted Crane |
Curb Weight(Kg) | 10800 |
Suitable Crane(kg) | 0-80000 |
Lifting Height(m) | 10-15 |
Rotator | 360° |
Max Person Allowed | 3 |
Overall Dimensions(mm) | 10325*2550*3550 |
Container Size(mm) | 4200*4300*2350*550 |
Working Radius(m) | 19.6 |
Operating Mode | Manual/Remote Control |
Chassis Technical Parameters | |
Brand Name | HOWO |
Fuel Type | Diesel Oil |
Front/Rear Axle(t) | 9.5/weichai340 |
Number of Axles | 4 |
Number of Tires | 12 |
Brakes | Air Brake |
Engine Power(KW) | 250 |
Transmission | 10-speed high and low |
Wheelbase (mm) | 1700+4350+1300 |
Emission | Euro 6 |
Tire Size | 12.00R20 |
