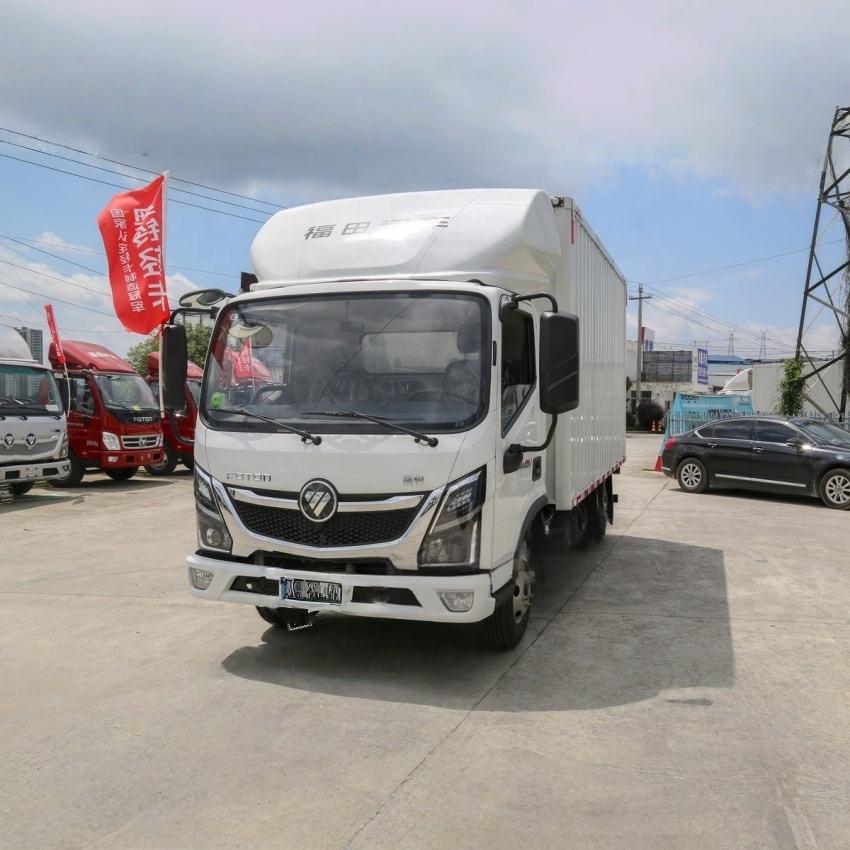

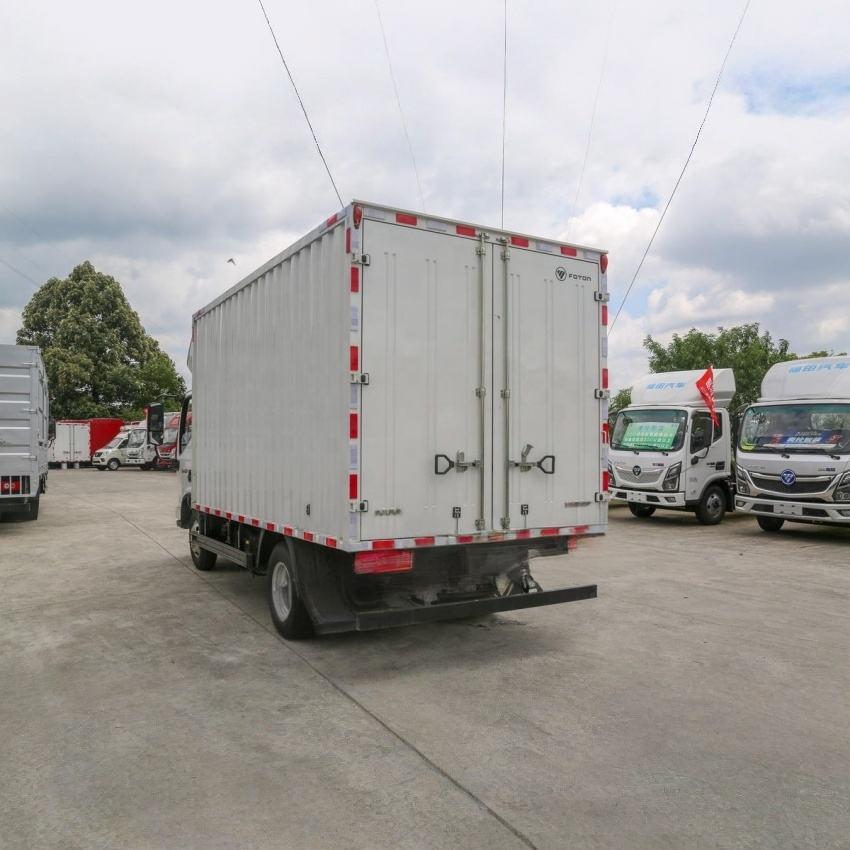

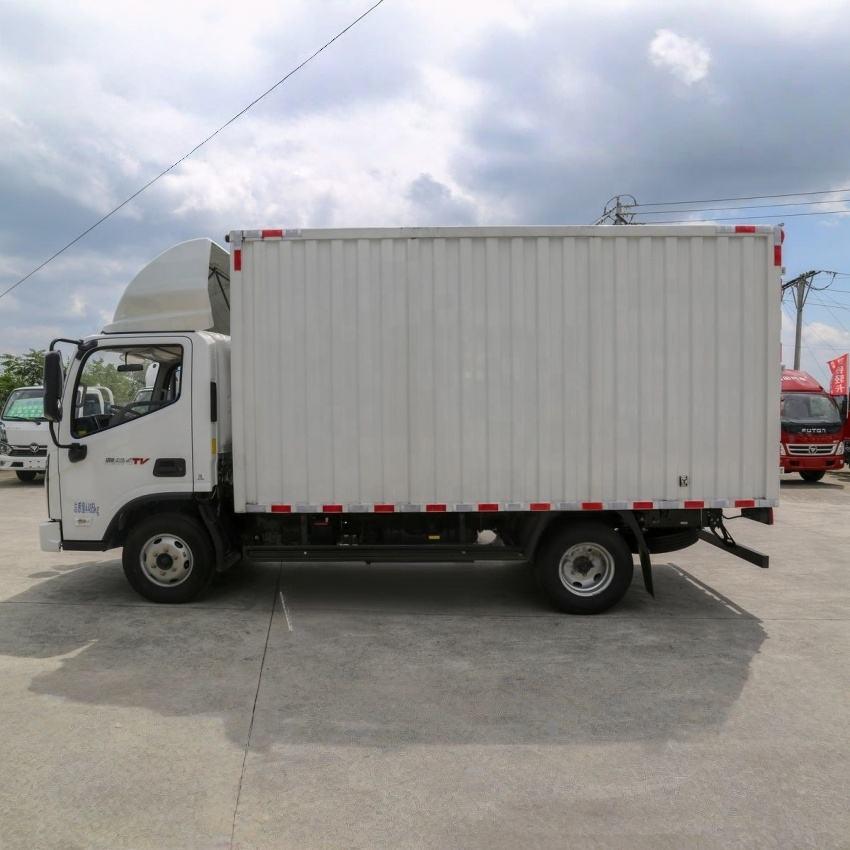

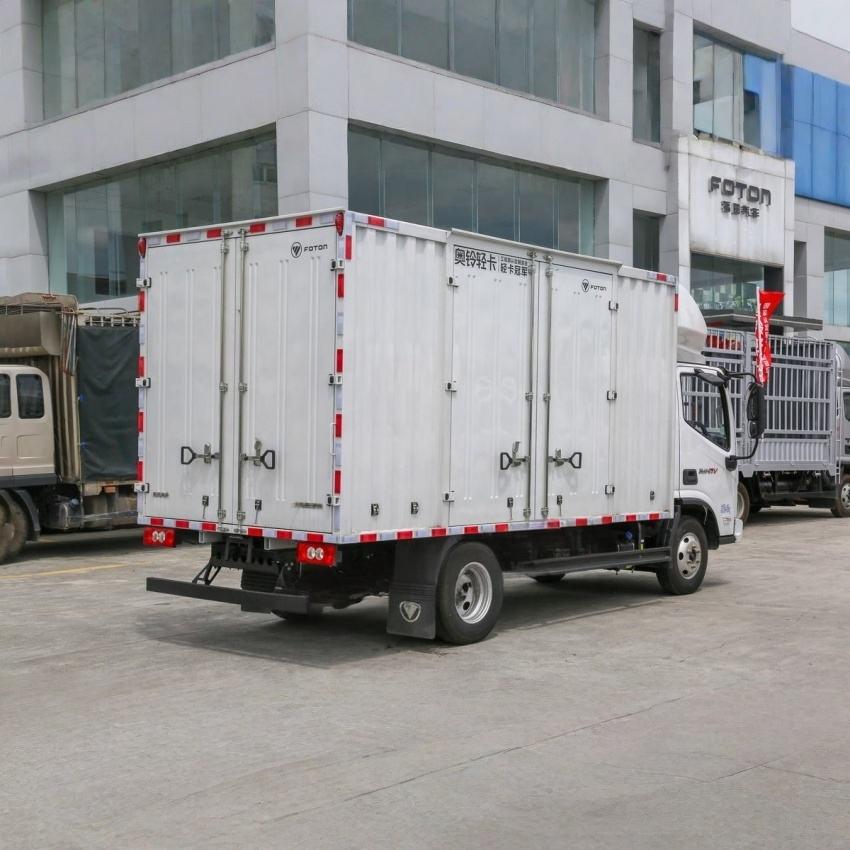

Foton BOX 4x4 Diesel Mini Truck Van New Automatic Transmission Rear FAST Gearbox Euro III 5-ton Fact
![[pics:title]](https://www.hbjlgs.com/static/upload/other/20251114/1763118749726596.jpeg)
![[pics:title]](https://www.hbjlgs.com/static/upload/other/20251114/1763118748637000.jpeg)
![[pics:title]](https://www.hbjlgs.com/static/upload/other/20251114/1763118748342399.jpeg)
![[pics:title]](https://www.hbjlgs.com/static/upload/other/20251114/1763118749637916.jpeg)
![[pics:title]](/static/upload/other/20251114/1763118749726596.jpeg)
![[pics:title]](/static/upload/other/20251114/1763118748637000.jpeg)
![[pics:title]](/static/upload/other/20251114/1763118748342399.jpeg)
![[pics:title]](/static/upload/other/20251114/1763118749637916.jpeg)
Parameter Category | Detailed Data |
Basic Vehicle Information | |
Announcement Model | BJ5048XXY8JEA-AB9 |
Vehicle Type | Box Van Truck |
Drive Configuration | 4×2 (2 front steering wheels + 2 rear driving wheels) |
Wheelbase | 3360 mm |
Cargo Box Length Class | 4.2 m |
Engine Model | Foton Cummins F2.5NS6B172 |
Transmission Model | Wanliyang WLY6GS40 |
Rear Axle Ratio | 4.875 |
Overall Vehicle Length | 5.995 m |
Overall Vehicle Width | 2.18 m |
Overall Vehicle Height | 3.44 m |
Front Track Width | 1730 mm |
Rear Track Width | 1615 mm |
Curb Weight | 2.805 tons (2805 kg) |
Rated Payload Capacity | 1.495 tons (1495 kg) |
Gross Vehicle Weight (GVW) | 4.495 tons (4495 kg) |
Maximum Speed | 110 km/h |
Place of Origin | Suizhou, Hubei (China) |
Tonnage Class | Light Truck |
Approach Angle | 20° |
Departure Angle | 16° |
Remarks | Optional: 3/8+6 leaf springs, 4.333 rear axle ratio |
Front Overhang/Rear Overhang | 1.11 m / 1.525 m |
License Plate Type | Blue License Plate (Compliant with China’s light-duty vehicle license standards) |
Energy Type | Diesel |
Engine Parameters | |
Engine Brand | Foton Cummins |
Engine Model | Foton Cummins F2.5NS6B172 |
Engine Series | Foton Cummins 2.5L |
Number of Cylinders | 4 Cylinders |
Fuel Type | Diesel |
Cylinder Arrangement | In-line |
Displacement | 2.498 L |
Emission Standard | Euro III |
Maximum Output Power | 120 kW |
Maximum Horsepower | 163 HP |
Maximum Torque | 460 N·m |
Maximum Torque Speed Range | 1500 - 1800 rpm |
Rated Engine Speed | 2900 rpm |
Transmission Parameters | |
Transmission Model | Wanliyang WLY6GS40 |
Transmission Brand | Wanliyang |
Shifting Mode | Manual |
Number of Forward Gears | 6 Gears |
Number of Reverse Gears | 1 Gear |
Cargo Box Parameters | |
Cargo Box Type | Box-type (Enclosed van structure for cargo protection) |
Cargo Box Length | 4.14 m |
Cargo Box Width | 2.1 m |
Cargo Box Height | 2.1 m |
Internal Cargo Box Width | 2.1 m |
Cab Parameters | |
Cab Type | Medium-sized Cab |
Cab Width | 1880 mm |
Approved Passenger Capacity | 3 Seats |
Seat Row Configuration | Single-Row |
